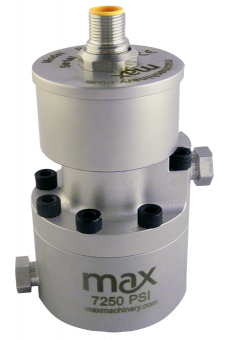

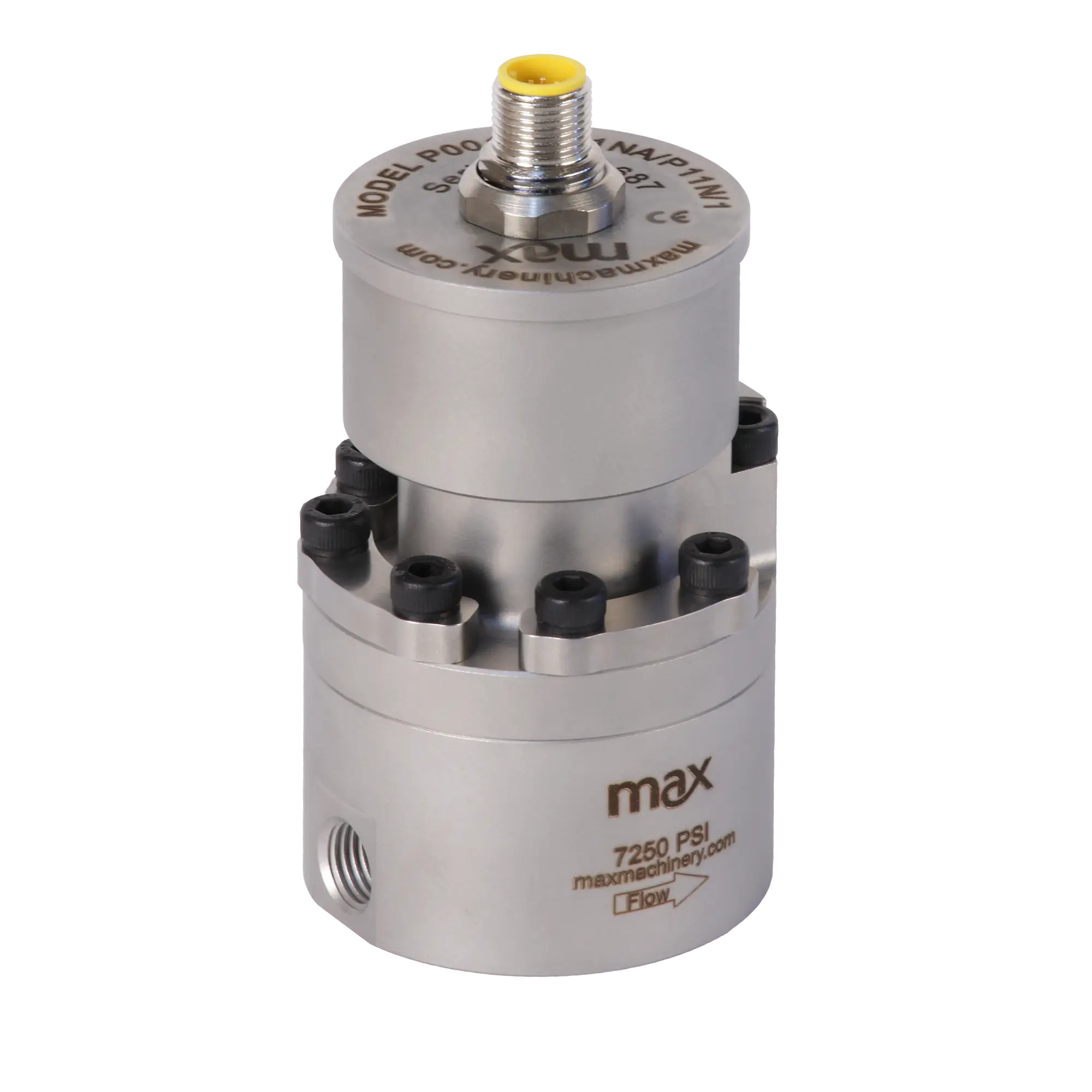

P001HS Piston Flow Meter

Dynamic flow industries like aerospace/automotive testing, machine tool cycling, and valve testing rely on Max meters to provide high resolution rapid 1.6 millisecond response times for their data collection.

Max Piston Meters are not sensitive to changes in flow profile, fluid density, or viscosity. No straight pipe runs or flow conditioners needed.

Choose from frequency or analog transmitter options. High temperature models up to 225°C available. CE Certified, Ex-proof version available with ATEX/IECEx and UL/cUL certifications.

Category: Piston Flow Meters

Flow	0.005 to 200 cc/min; 0 to 0.053 gpm
Port Size	1/4″ or 6mm tube fitting
Accuracy	(at 3 cP): ± 0.2% of reading over a 200:1 range
Pressure	7250 psi (500 bar) maximum
K-Factor	12,000 pulses/cc
Fluids	Most non aqueous, hydrocarbon based fluids

Specifications

MECHANICAL

Filtration	5 Micron recommended
Weight	1.1 kg (2.5 lbs)

MATERIALS OF CONSTRUCTION

External	Stainless Steel, type 316; Xylan coated bolts
Wetted	Stainless steel, type 316, Case Hardened type 316, Specialty 400 Series; Nickel plated SmCo magnet
O-Rings	Standard: Viton® Optional: Perfluoroelastomer

TRANSMITTER VARIATIONS

Signal Type	Output	Resolution (K-Factor)	Std. Temp†	High Temp†	Ultra Temp
Frequency	5 VDC square wave (current sinking available)	12,000 pulses/cc	90°C	155°C	225°C
Frequency	5 VDC quadrature (2-phase)	6,000 pulses/cc/phase	90°C	155°C	225°C

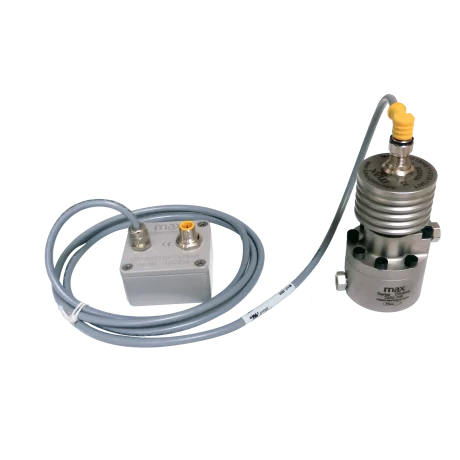

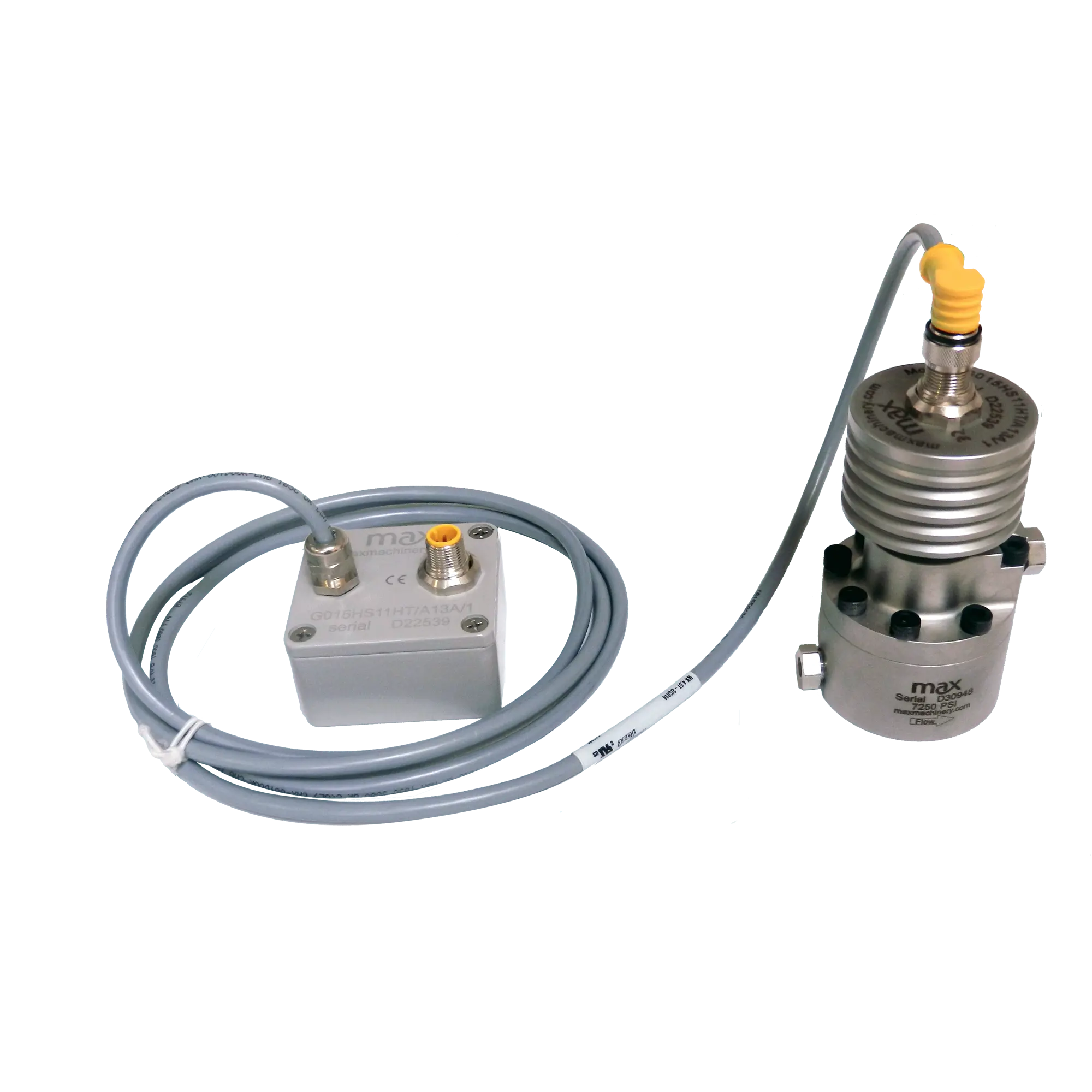

Analog	0-10 VDC	Uni or Bi-directional	90°C	155°C	225°C
Analog	4-20 mA	Uni or Bi-directional	90°C	155°C	225°C

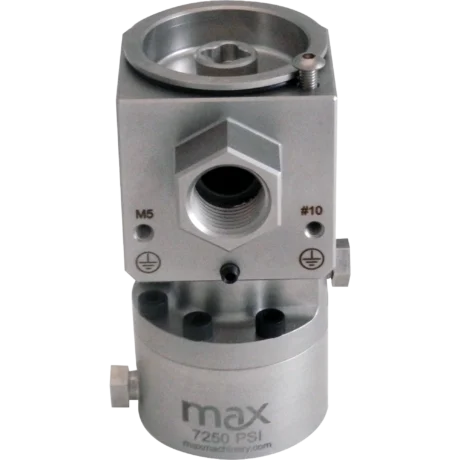

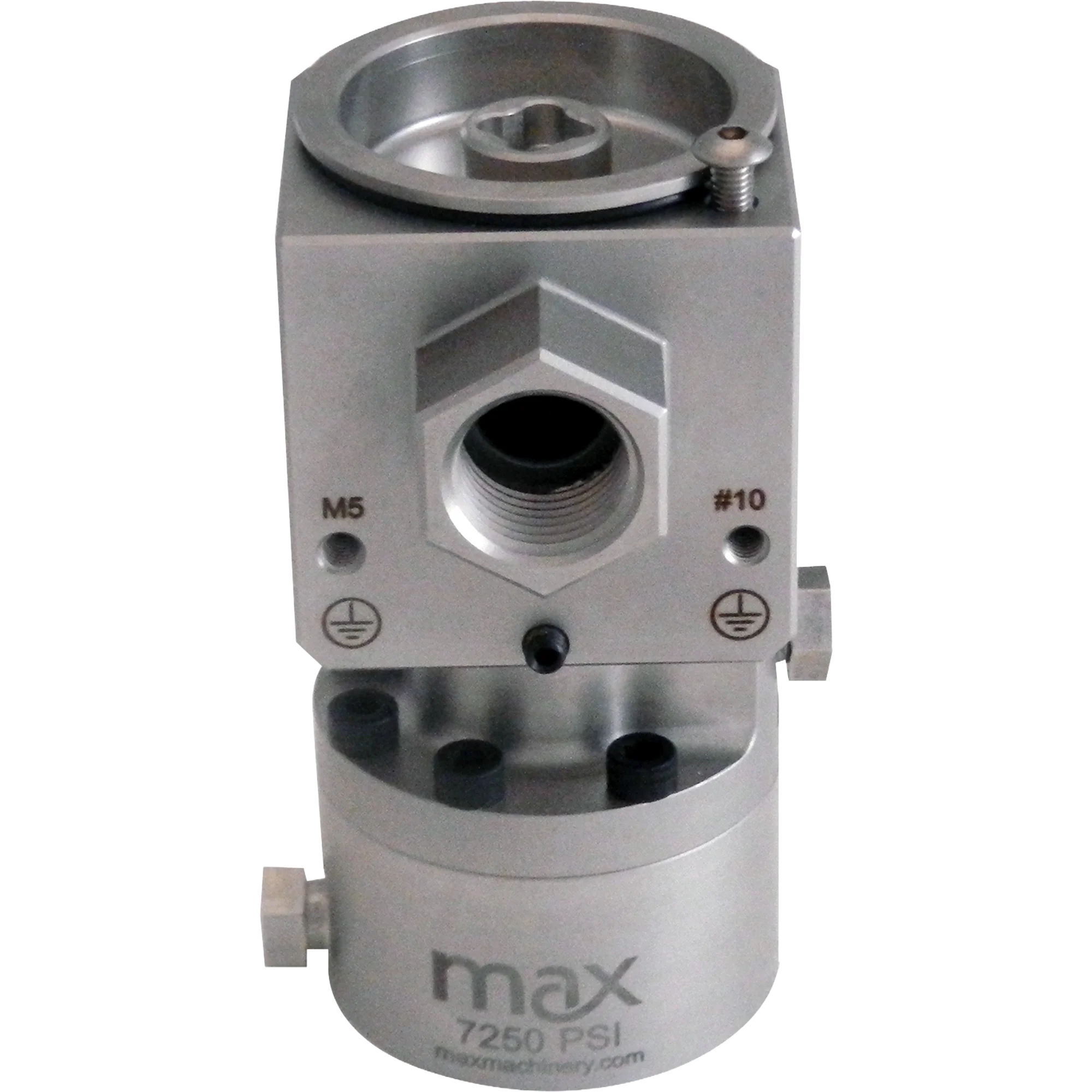

Compliance:	CE Certified, Ex-proof version available with ATEX/IECEx II 2 G Ex db IIB Tx Gb as well as UL, cUL certification for Class 1, Division 1, Groups C and D, Tx.†Maximum temperature rating for ATEX certified transmitters is 75°C Std. Temp and 130°C High Temp.
